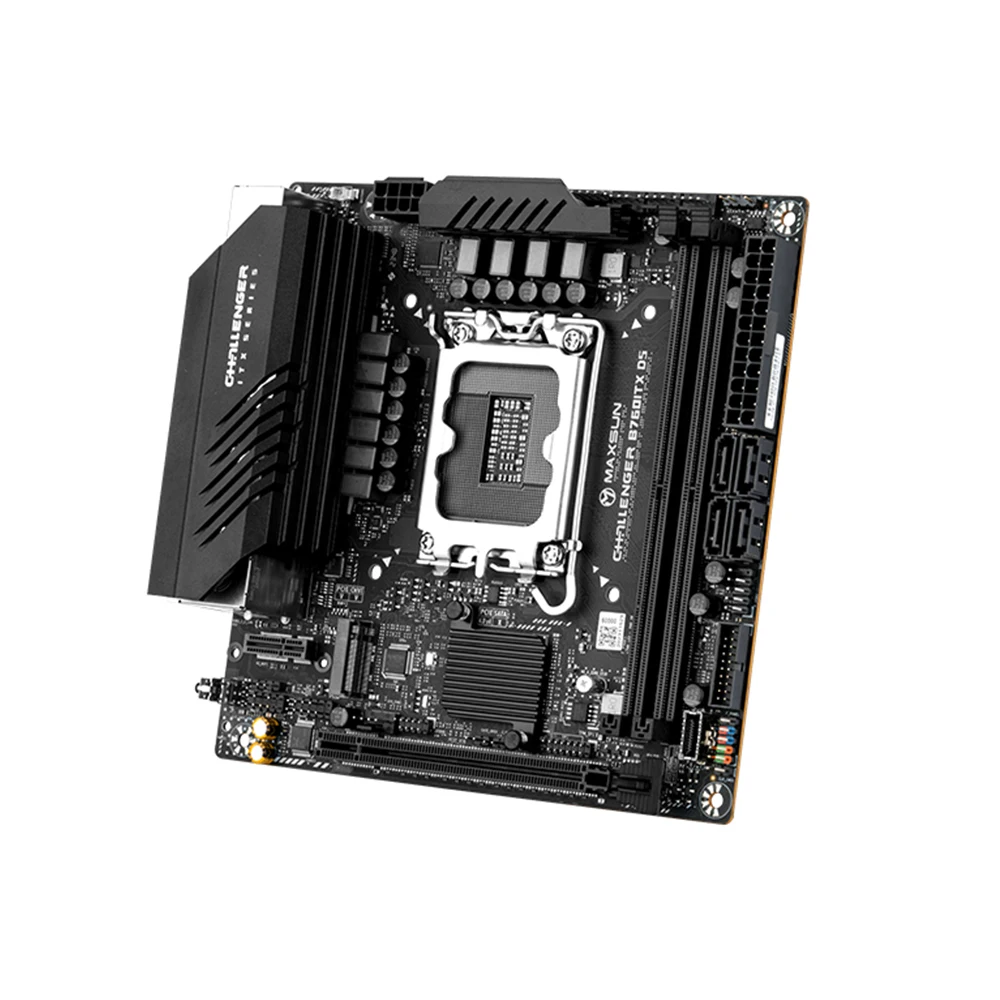

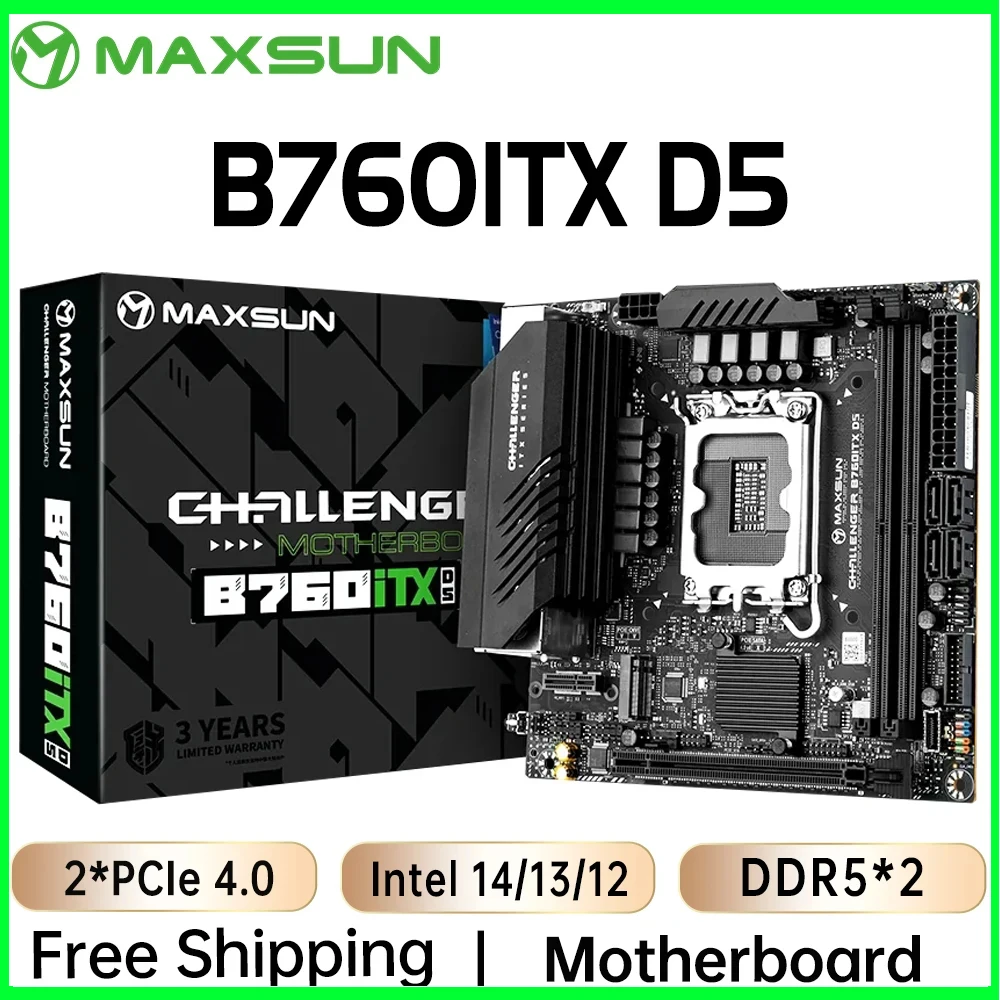

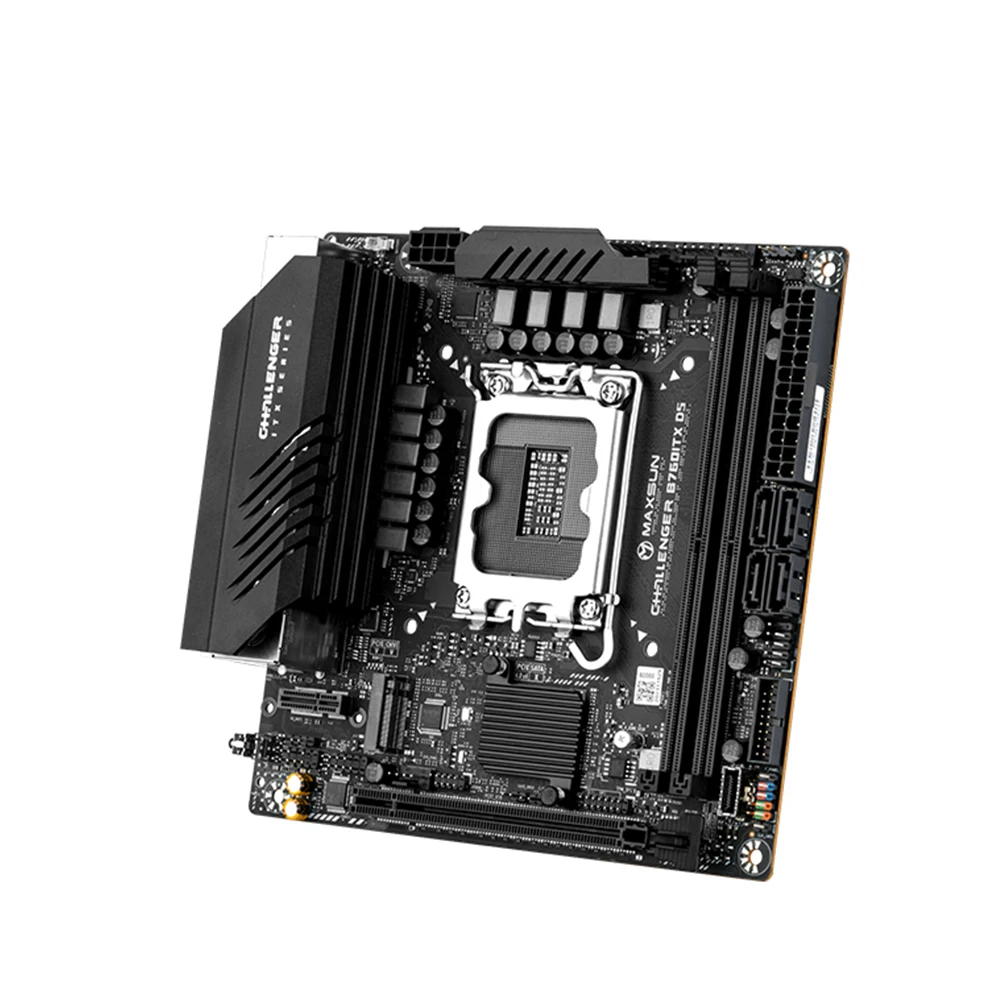

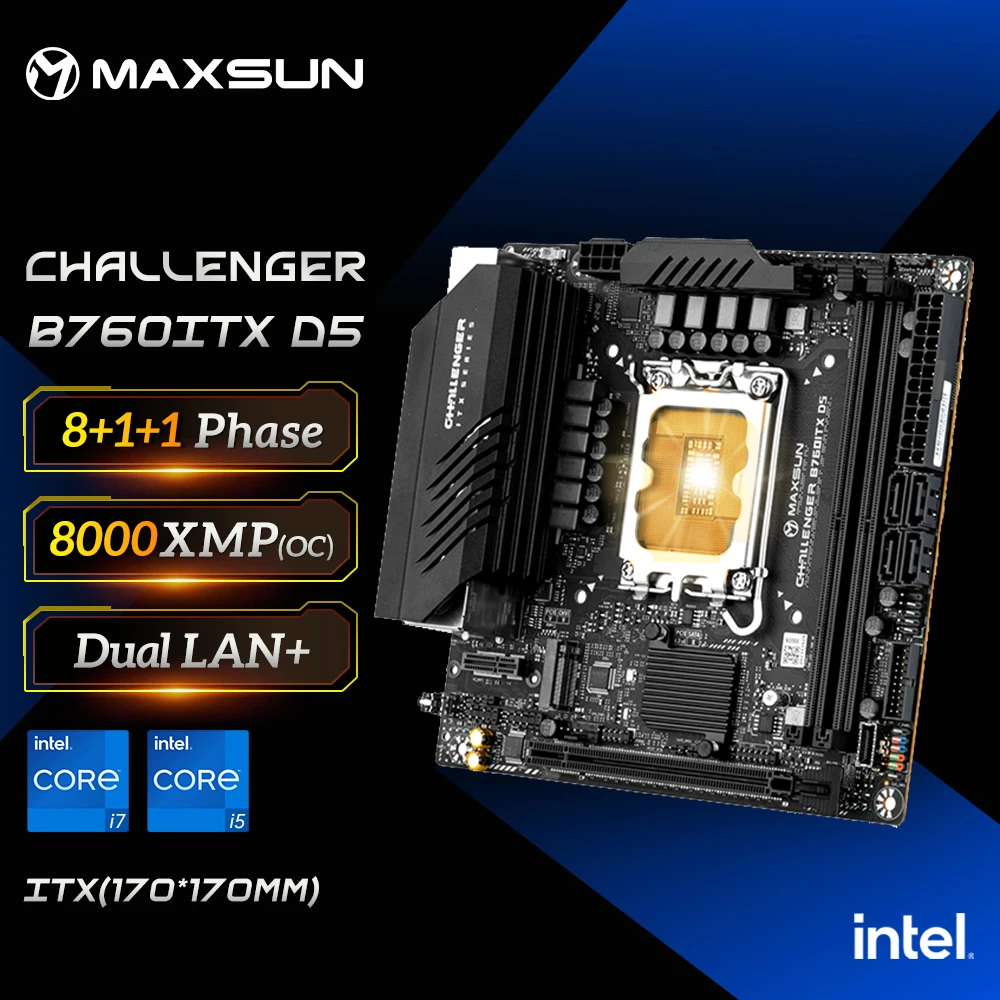

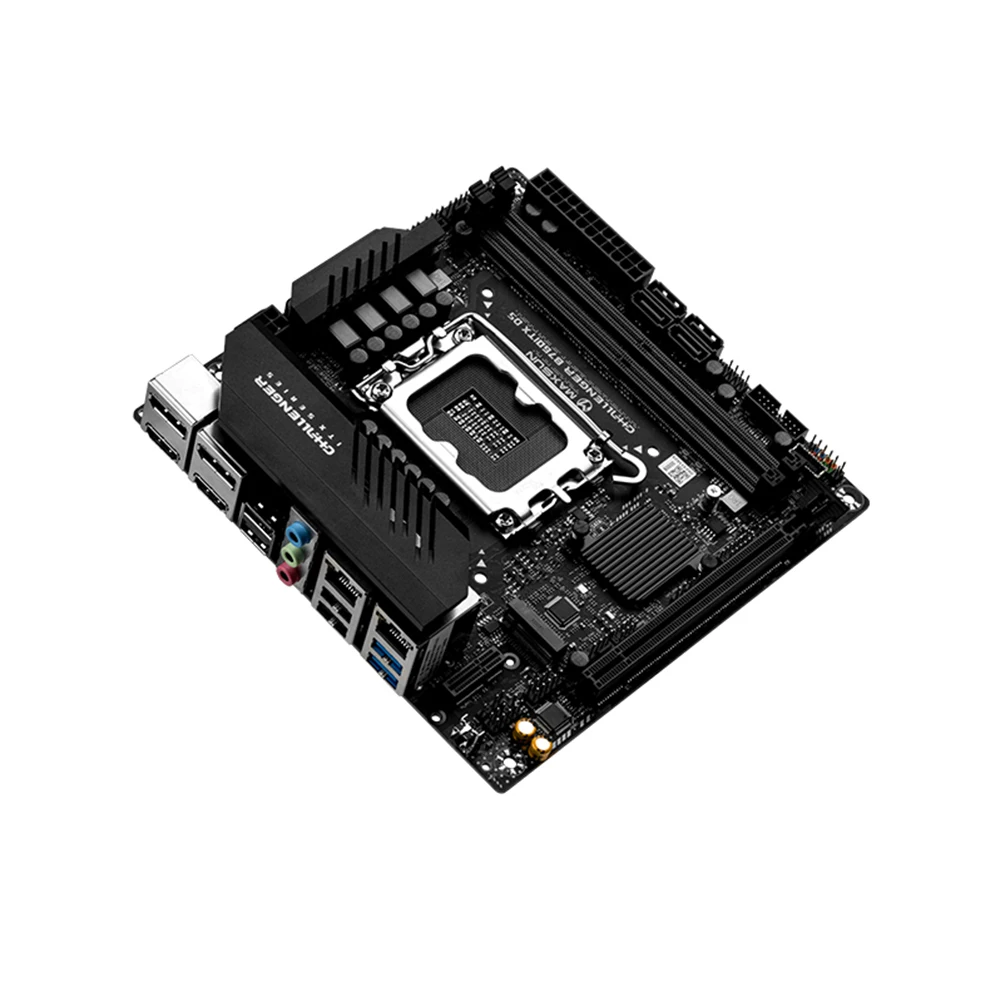

MAXSUN Game Motherboard B760ITX D5 support Intel 14 13 12th generation Core CPU DDR5 M.2 PCIEX16 4.0 Computer components
- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: 13th Intel Core i7,12th Intel Core i5,13th Intel Core i5,12th Intel Core i3,12th Intel Core i9,13th Intel Core i3,12th Intel Core i7,13th Intel Core i9
- Ports: Ethernet
- Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Production,Mini PC,Scientific Computing,Video Rendering,MaxCompute
- Onboard Connectors & Header: 24-pin Main Power Connector,AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,PWR_FAN Connector,Chassis(SYS) Fan Connector(s),RGB Header,System Panel(s) (Chassis intrusion header is inbuilt)

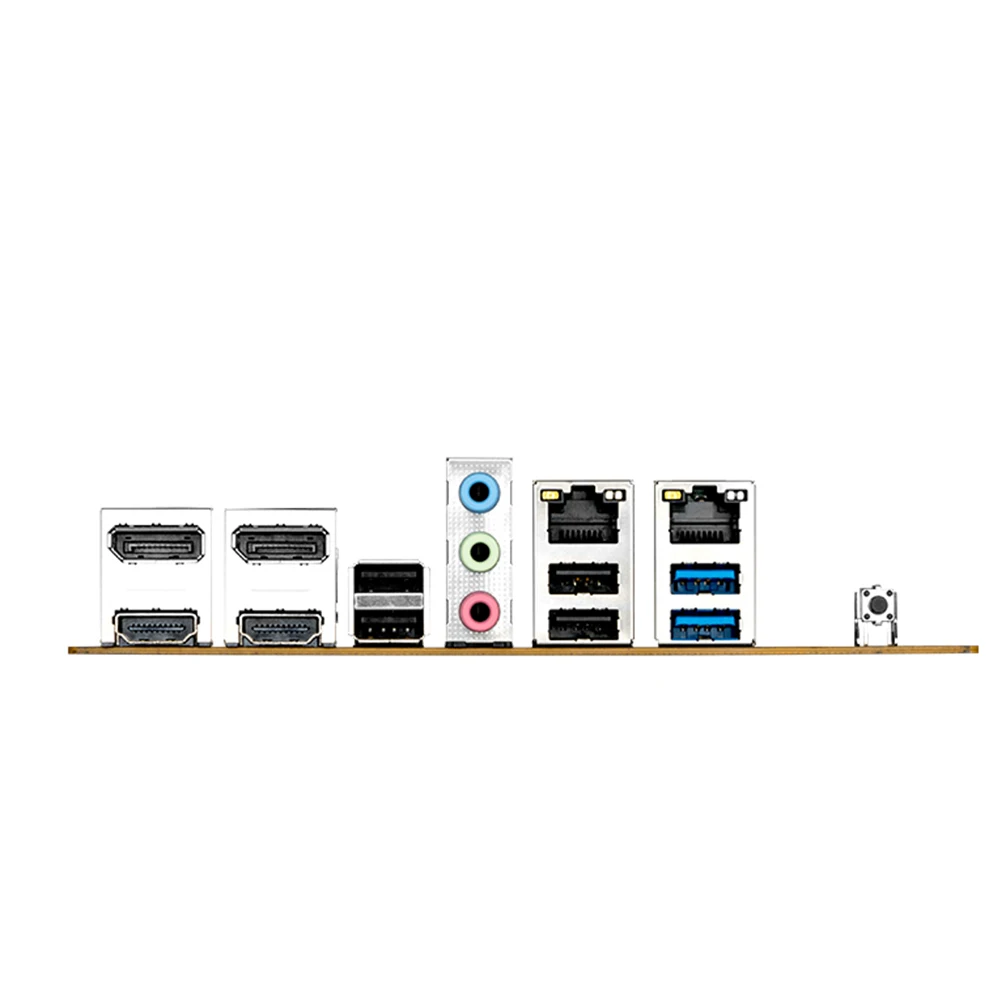

- Back I/O Ports: 1x RJ45,USB Type-C,Displayport,2x USB 3.2/3.1 Gen 2,HDMI 1.4,HDMI 2.0
- Support USB Type: USB 2.0,USB 3.2 Gen1
- Onboard LAN: 1x RJ45
- Number of M.2: 2
- Number of SATA Ports: 4
- Storage Interface Type: SATA 3,M.2 (NVMe)
- Number of PCI: 2
- PCI – E standards: PCI-E 5.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR5
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 64 GB
- Chipset Manufacturer: Intel
- Battery Included: no
- With CPU: No
- Chipset: Intel B760
- Application: Desktop
- Socket Type: LGA 1700
- Brand Name: MAXSUN
- Special Features: Cooling Armor,Support for Overclocking
- Origin: Mainland China
*Robust power delivery with an 8-pin +12V CPU power connector and 24-pin motherboard power connector.
*Effective thermal management facilitated by 1x CPU fan connector and 3x SYS fan connectors.
*High-performance memory support with 2x DDR5 slots, compatible with XMP up to 8000 (OC) MHz.
*Versatile expansion options are provided by 1x PCIe 5.0 x16 slot and 2x PCIe 4.0 x4 M.2 slots supporting NVMe protocol.
*Flexible storage solutions with 4x SATA 6Gb/s ports.
*Convenient front and rear panel connectivity featuring USB 3.2 Gen2 Type-C®, USB 3.2 Gen1, and USB 2.0 ports.
*High-resolution display support up to 4K resolution via DisplayPort 1.4, HDMI™ 2.0, and HDMI™ 1.4 ports.
*Onboard debug LED and CLR_CMOS button for easy troubleshooting and maintenance.
*Reliable networking capabilities with 2.5Gb+1Gb dual LAN ports.
*Optional wireless connectivity with 1x M.2 WIFI slot (Key_E).
| Bundle | Motherboards |
|---|---|
| High-concerned chemical | None |
| RAID Supported | Yes |
| Processor compatibility | 13th Intel Core i7,12th Intel Core i5,13th Intel Core i5,12th Intel Core i3,12th Intel Core i9,13th Intel Core i3,12th Intel Core i7,13th Intel Core i9 |
| Ports | Ethernet |
| Usage Scenario | Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Production,Mini PC,Scientific Computing,Video Rendering,MaxCompute |
| Onboard Connectors & Header | 24-pin Main Power Connector,AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,PWR_FAN Connector,Chassis(SYS) Fan Connector(s),RGB Header,System Panel(s) (Chassis intrusion header is inbuilt) |
| Back I/O Ports | 1x RJ45,USB Type-C,Displayport,2x USB 3.2/3.1 Gen 2,HDMI 1.4,HDMI 2.0 |
| Support USB Type | USB 2.0,USB 3.2 Gen1 |
| Onboard LAN | 1x RJ45 |
| Number of M.2 | 2 |
| Number of SATA Ports | 4 |
| Storage Interface Type | SATA 3,M.2 (NVMe) |
| Number of PCI | 2 |
| PCI - E standards | PCI-E 5.0 |
| Number Of Memory Slots | 2 |
| Support Memory Type | DDR5 |
| Memory channel | Double |
| Package | Yes |
| Maximum Ram Capacity | 64 GB |
| Chipset Manufacturer | Intel |
| Battery Included | no |
| With CPU | No |
| Chipset | Intel B760 |
| Application | Desktop |
| Socket Type | LGA 1700 |
| Brand Name | MAXSUN |
| Special Features | Cooling Armor,Support for Overclocking |
| Origin | Mainland China |
