MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0
MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0 - Image 2
MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0 - Image 3
MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0 - Image 4
MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0 - Image 5
MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0 - Image 6
MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0
Add to cart

MACHINIST X99 RS9 Motherboard Combo Support LGA2011-3 Xeon E5 2680 V4 CPU NVME/SATA M.2 Four Channel Memory usb3.0

Share
0
(0)
0 Sold
Price range: $268.34 through $331.76
0 Sold
0
(0)
SKU: 1005010644497532 Categories: , , Tags: , , ,

Available Coupon

Discount
See T&C
Get 50% discount
Min. purchase $0.00
Coupon is valid until 01 Jan 2030
Discount
See T&C
Get 70% discount
Min. purchase $0.00
Coupon is valid until 01 Jan 2030
  • High-concerned chemical: None
  • RAID Supported: no
  • Processor compatibility: Intel Xeon
  • Ports: USB 3.0
  • Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
  • Onboard Connectors & Header: 24-pin Main Power Connector,4-pin +12V Power Connector,8-pin +12V Power Connector
  • Back I/O Ports: 1x RJ45,WiFi,3 x Audio Jacks,PS/2
  • Support USB Type: USB 2.0,USB 3.0
  • Max LAN Speed: 1000Mbps
  • Onboard LAN: 1x RJ45,WIFI (AC)
  • Supports M.2 SSD: 2280
  • Number of M.2: 3
  • Number of SATA Ports: 6
  • Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)
  • Number of PCI: 3
  • Number of PCIe x 1: 2
  • Number of PCIe x 4: 0
  • Number of PCIe x 8: 0
  • Number of PCIe x 16: 1
  • PCI – E standards: PCI-E 3.0
  • Number Of Memory Slots: 4
  • Support Memory Type: DDR4
  • Quality Certification: ce,ROHS
  • Memory channel: Four
  • Package: Yes
  • Maximum Ram Capacity: 128 GB
  • Form Factor: Micro-ATX
  • Chipset Manufacturer: Intel
  • Battery Included: no
  • With CPU: Yes
  • Chipset: Q87
  • Application: Desktop
  • Socket Type: LGA 2011-3
  • Brand Name: MACHINIST
  • Special Features: NONE
  • Origin: Mainland China
> >Due to the continuous update of product batches, new and old packaging boxes will be sent randomly. The appearance and content parameters of the packaging boxes are for reference only!

> >Please carefully check our bundle before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please read carefully!!
~~Motherboard: X99 RS9.
~~Motherboard + CPU: X99 RS9 + Used E5 2680 V4.
Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink *1.
(All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!)"

> > Motherboard information:
Brand :MACHINIST
Motherboard model :X99 RS9
Processor: Supports Intel LGA 2011-3-pin series processors;
Chipset :B85/Q87/C226 Chipset;

> > Memory:
Technology: Four-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ;
Maximum capacity: 128GB (32G x 4)
Memory slot :4 * 288-pin DDR4;
Supported memory types: The memory type supports DDR4 desktop and server memory.
Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Incompatibility with other brands may occur.

>> Other parameters:
USB interfaces :6 USB2.0 ports,2 USB3.0 ports;
Ethernet: 1 Gigabit network card;
PCIe: 1 PCIe 16x, 2 PCIe 1x;
SATA ports: 6;
Diagnosis card: 1;
M.2 interface: PCIE 3.0 *2,NGFF WIFI.

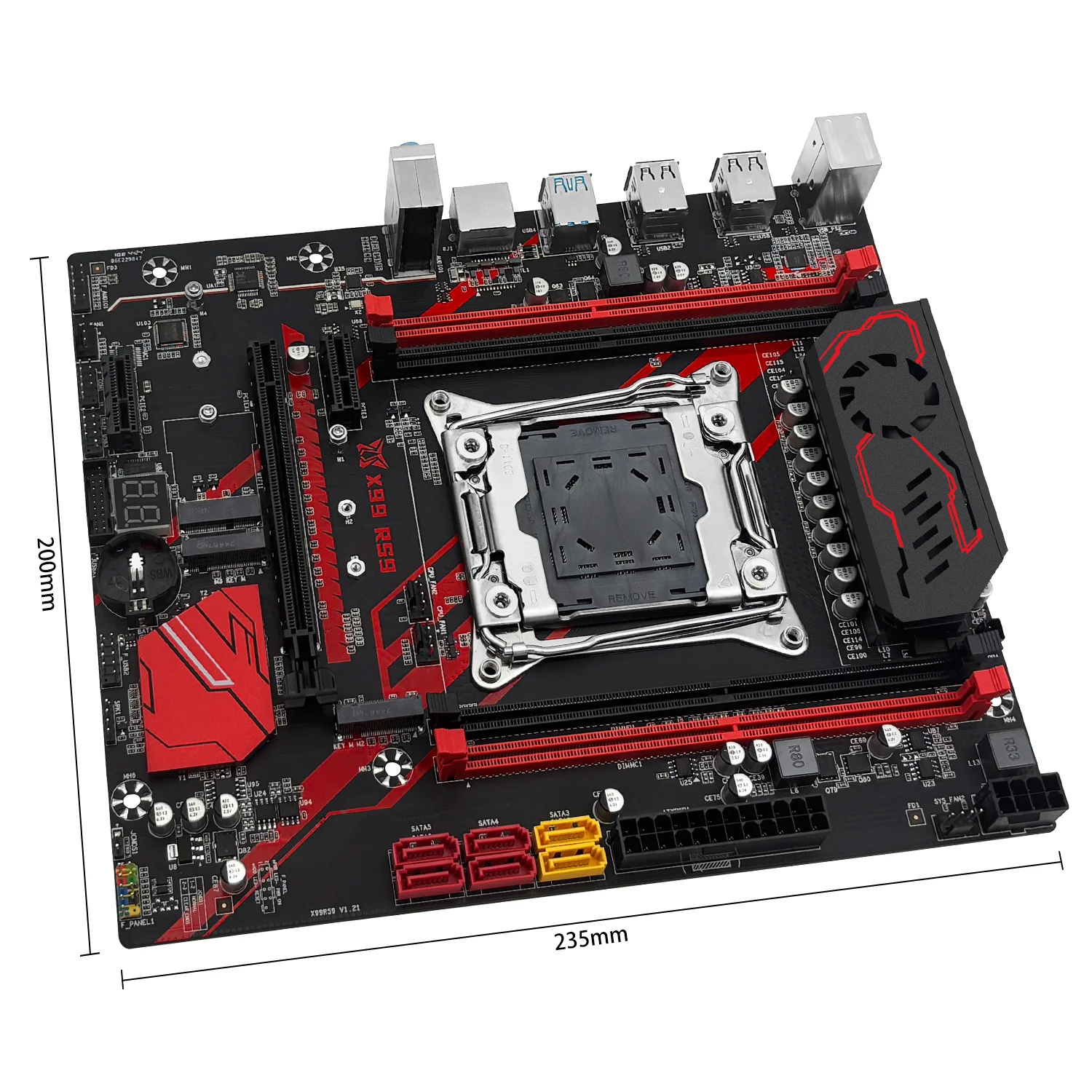

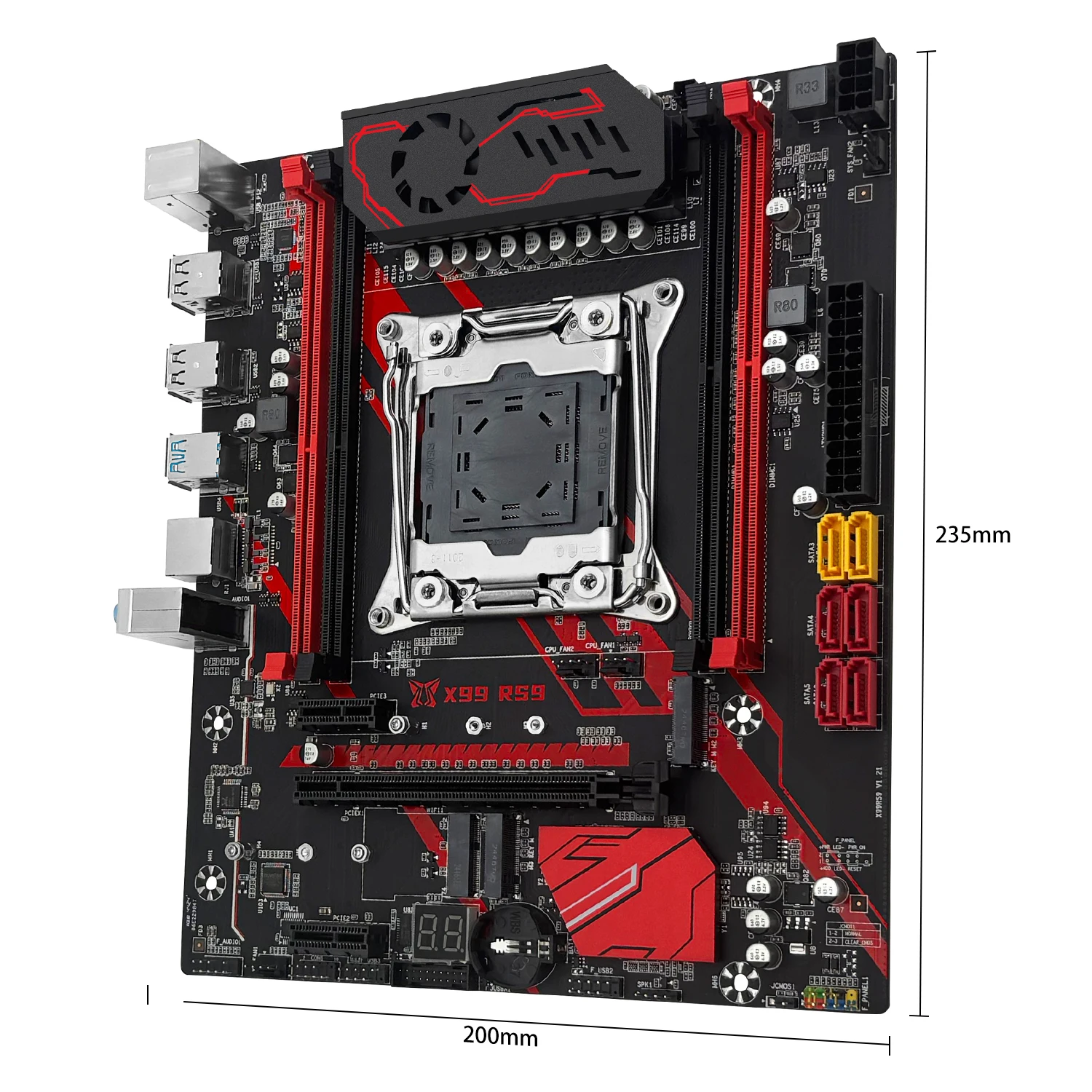

Overall dimensions :235mm * 200mm.>> Regarding tariff issues, please make sure you can solve the customs clearance issues by yourself. If you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:
(1) The color of the bottom plate may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3) Due to different displays and different light, the picture may not show the actual color of the item. Thank you for your understanding.
(4) The platform requires a strong power supply. Please make sure your power supply is sufficient to support this platform. (at least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
