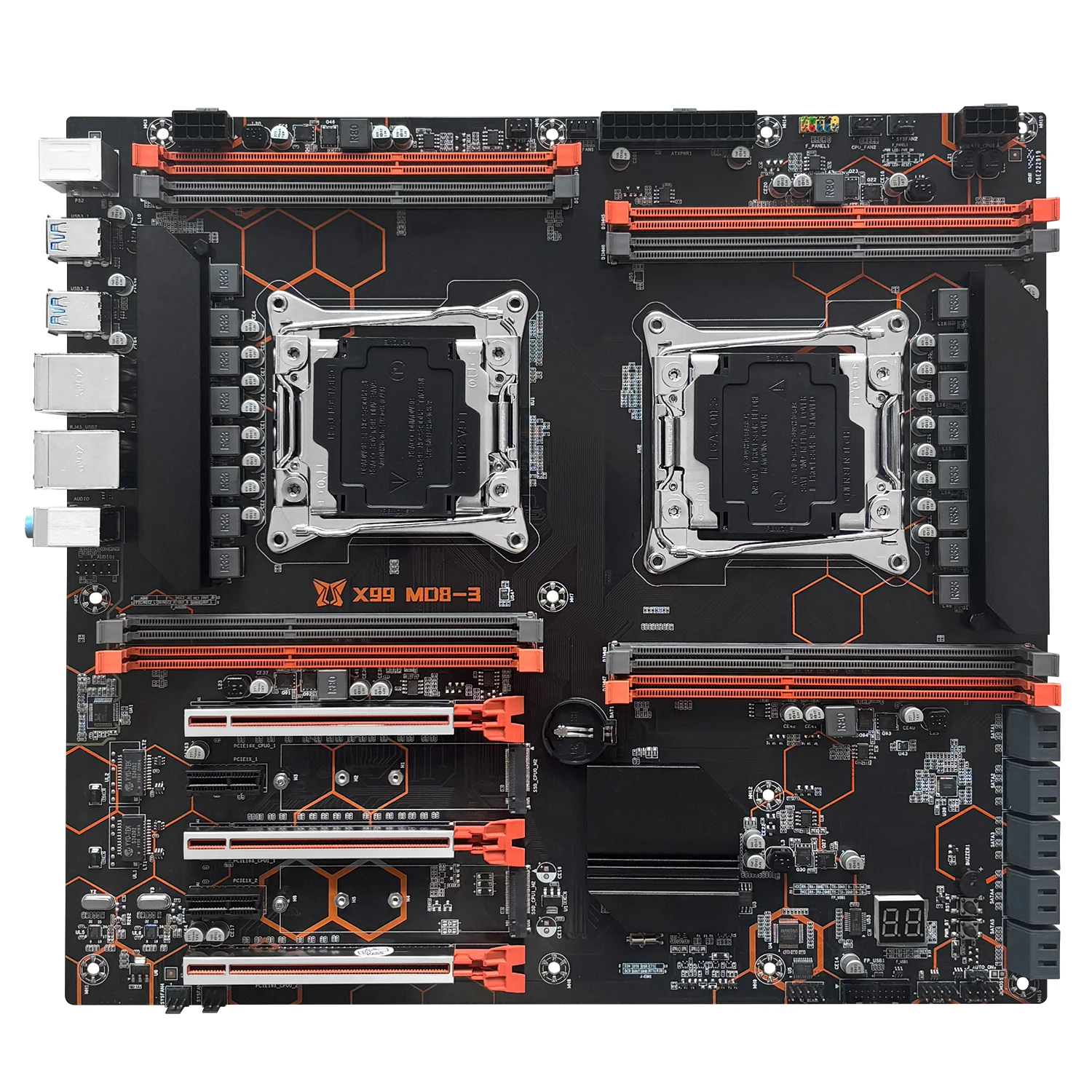

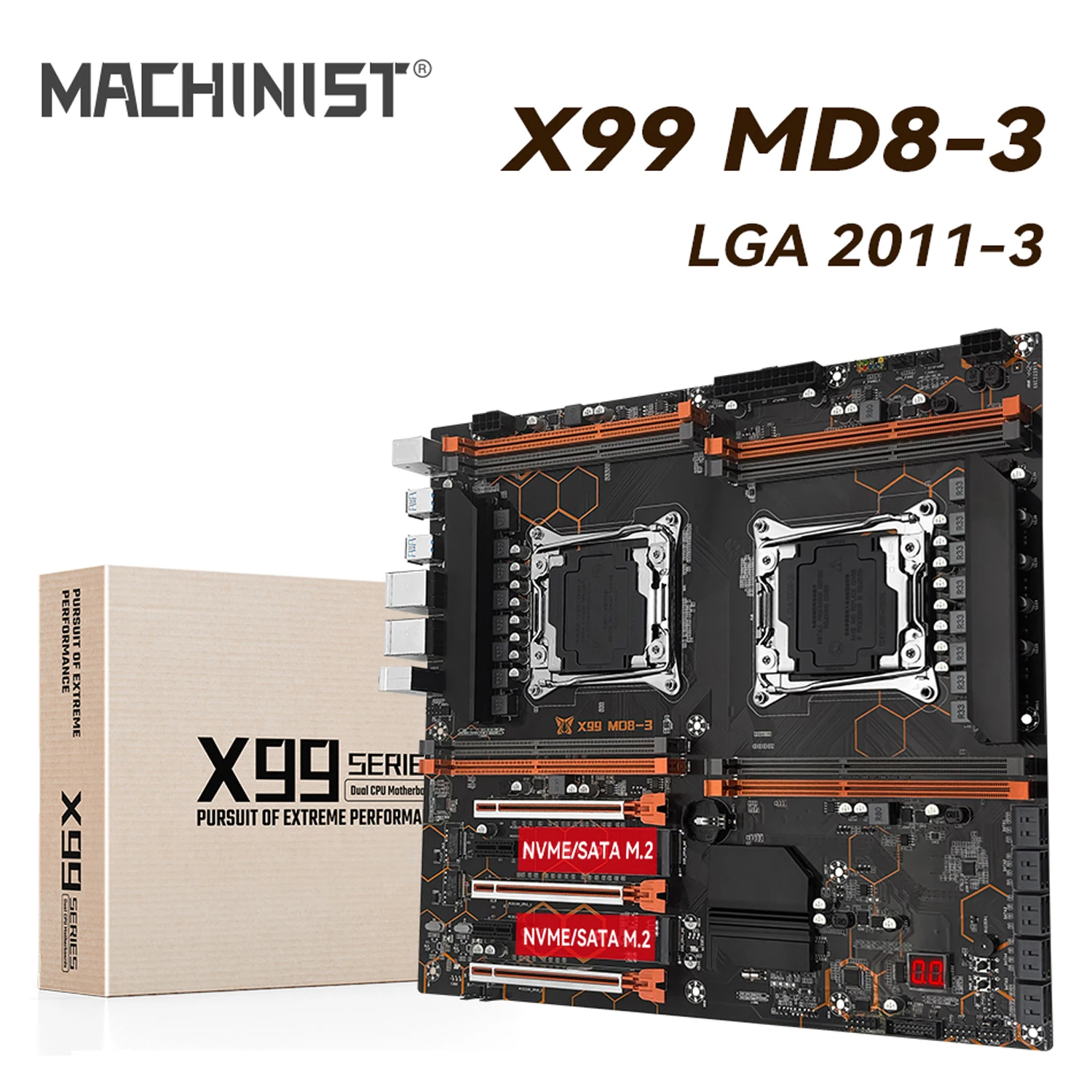

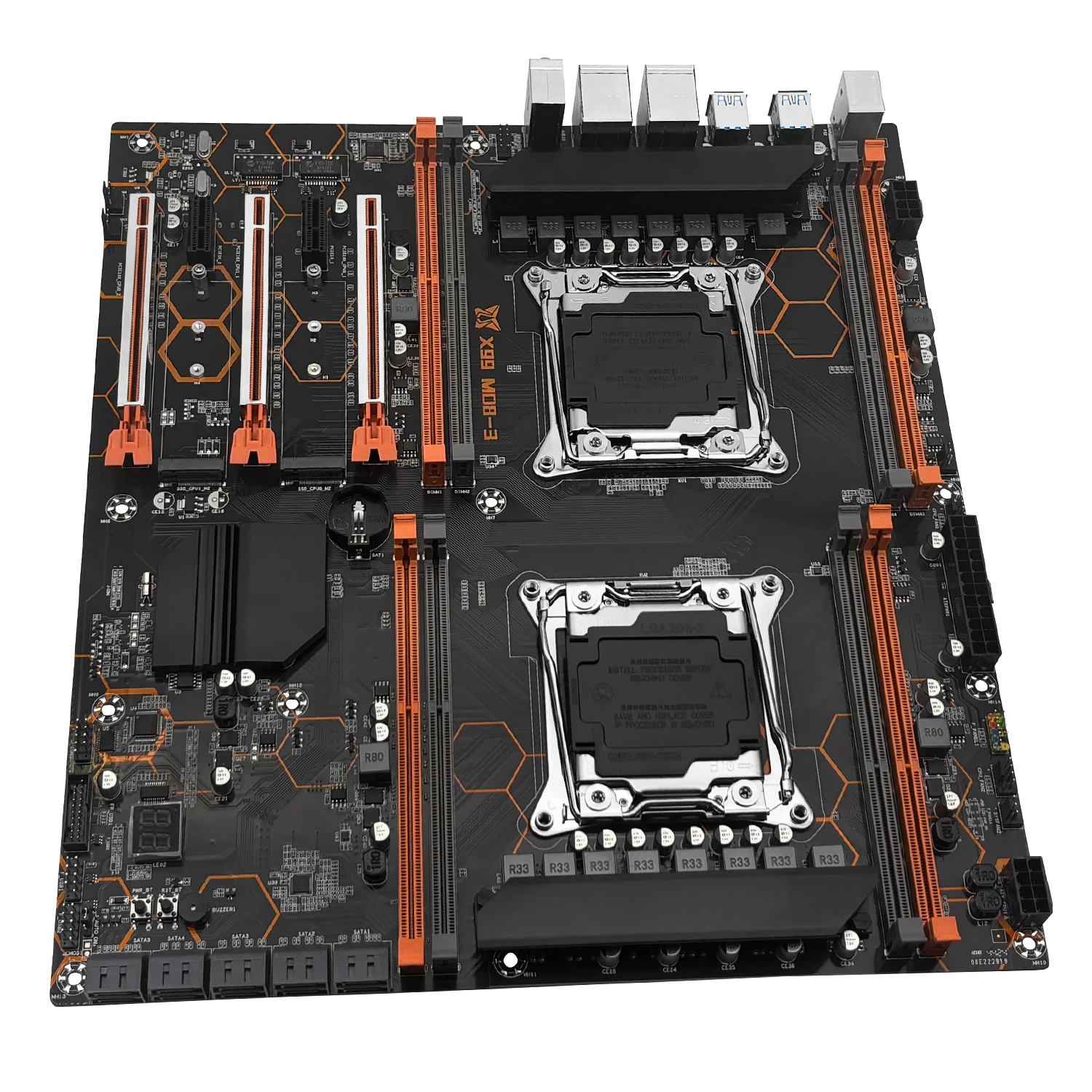

MACHINIST X99 Dual CPU Motherboard LGA2011-3 Support Intel Xeon E5 2629 2649 2666 2673 2678 V3 2696 V3 CPU DDR3 RAM Memory MD8-3
- High-concerned chemical: None
- RAID Supported: no
- Processor compatibility: 6th Intel Core i5,Intel Others
- Usage Scenario: Gaming,Audio & Video,Office,Video Production,Mini PC,others
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,PWR_FAN Connector,USB 3.0 Connector,USB 2.0 Connector
- Back I/O Ports: 1x RJ45,4 x USB 2.0,PS/2
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Supports M.2 SSD: 2280
- Number of M.2: 2
- Number of SATA Ports: 10
- Storage Interface Type: SATA,M.2 (NVMe),M.2 (SATA)
- Number of PCI: 5
- Number of PCIe x 1: 2
- Number of PCIe x 4: 0
- Number of PCIe x 8: 1
- Number of PCIe x 16: 2
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 8
- Support Memory Type: DDR3
- Quality Certification: ce,ROHS
- Memory channel: Four
- Form Factor: CeB
- Package: Yes
- Maximum Ram Capacity: 256GB
- Form Factor: E-ATX
- Chipset Manufacturer: Intel
- Battery Included: no
- Material: others
- With CPU: No
- Chipset: C612
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: MACHINIST
- Special Features: NONE
- Origin: Mainland China
- Certification: RoHS,CE
Friends, please note: This motherboard has a DDR3 memory slot and only supports some processors (the processors currently tested only support E5 2629 V3, E5 2649 V3, E5 2669 V3, E5 2666 V3, E5 2673 V3, E5 2676 V3, E5 2678 V3, E5 2696 V3). After purchase, you know by default that you can only use these processors.
Package includes:
Motherboard: MACHINIST X99 MD8-3 2011-3 motherboard*1Pcs.

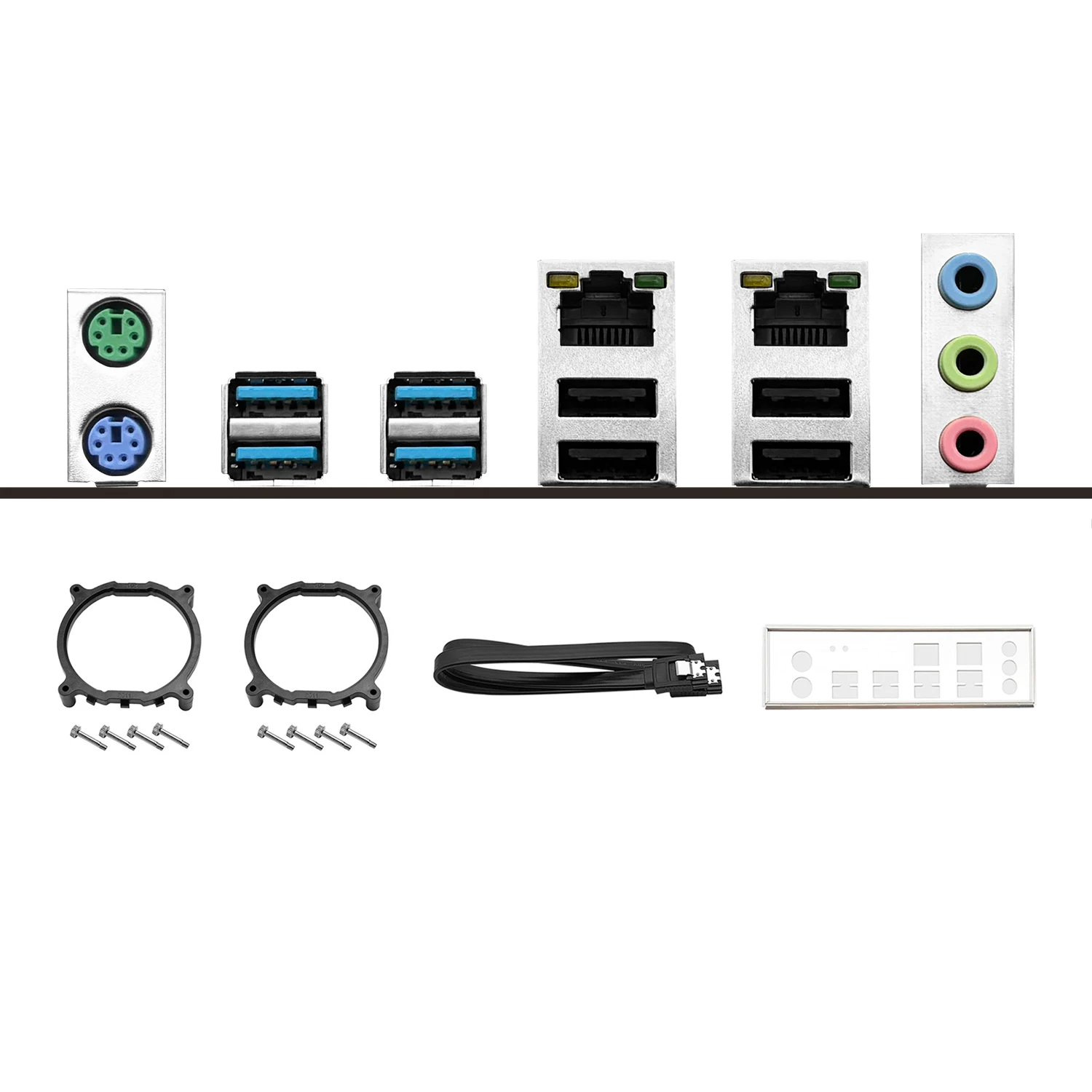

Bonus accessories: I/O shield*1, SATA cable*1, lga 2011 heat sink*1.
(The package is manually tested before sending. If any gifts are missing, it cannot be used as a reason for refund, please understand!)
Motherboard information:
Brand: MACHINIST.
Motherboard model: X99 MD8-3.
Processor: Support LGA 2011-3 series, dual processor interface.
Chipset: C612 chipset.
Memory technology: 8-channel DDR3. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity 256GB (32G x 8).
Memory slot: 8 x 288 PIN DDR4.
Note 1: Please use international brands such as Samsung, Kingston, Sandisk, Micron, etc. Other brands are not compatible.

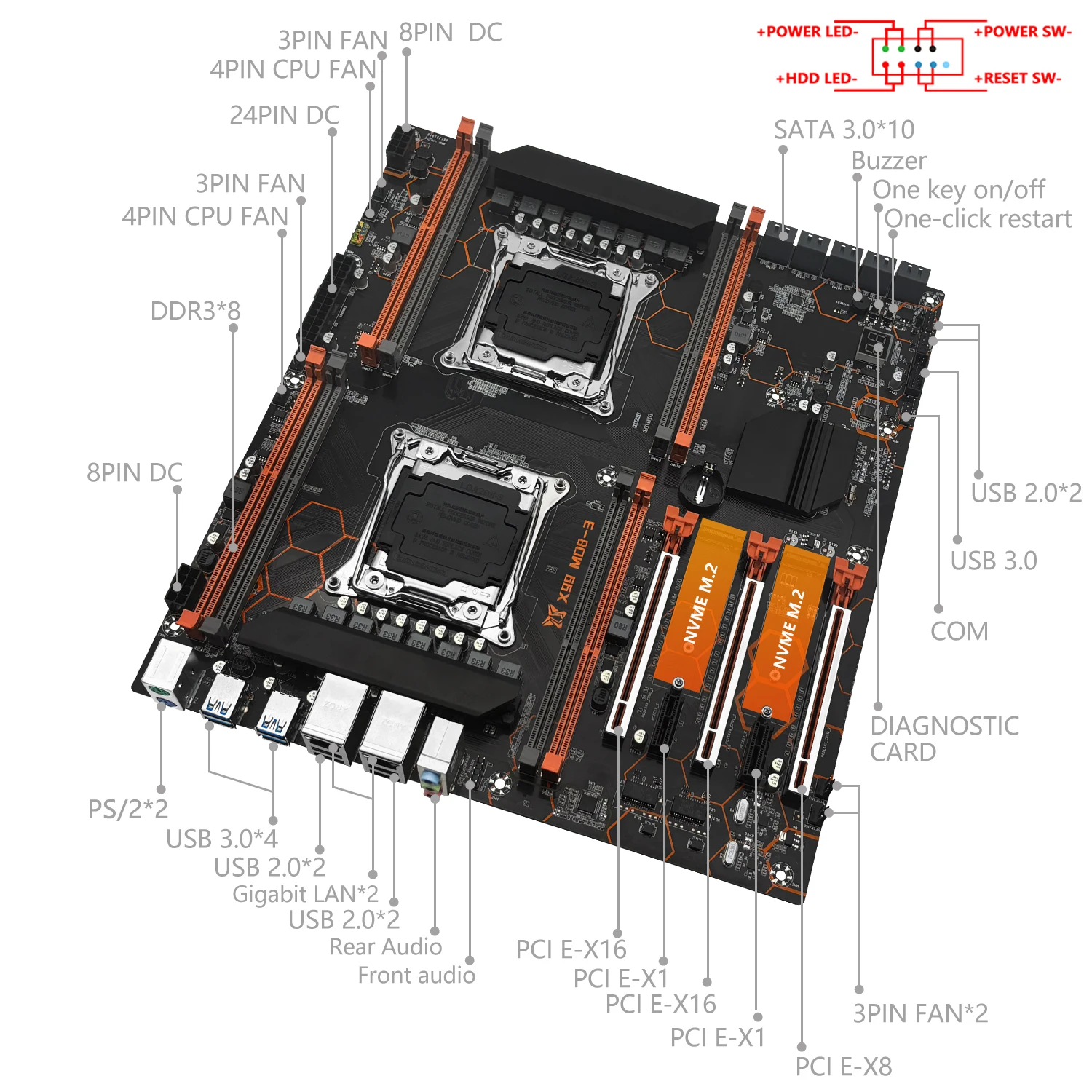

Others:
PS/2: 1 KB interface + 1 MS interface,
Ethernet: 2 Gigabit network cards,
Diagnostic card: 1,
USB interface: 4 USB2.0; 4 USB3.0,
SATA interface: 10 (SATA3.0),
M.2: 2 (NVMe/SATA switch),
PCIe: 2 PCIe 16x, 2 PCIe 1x, 1 PCIe 8x,

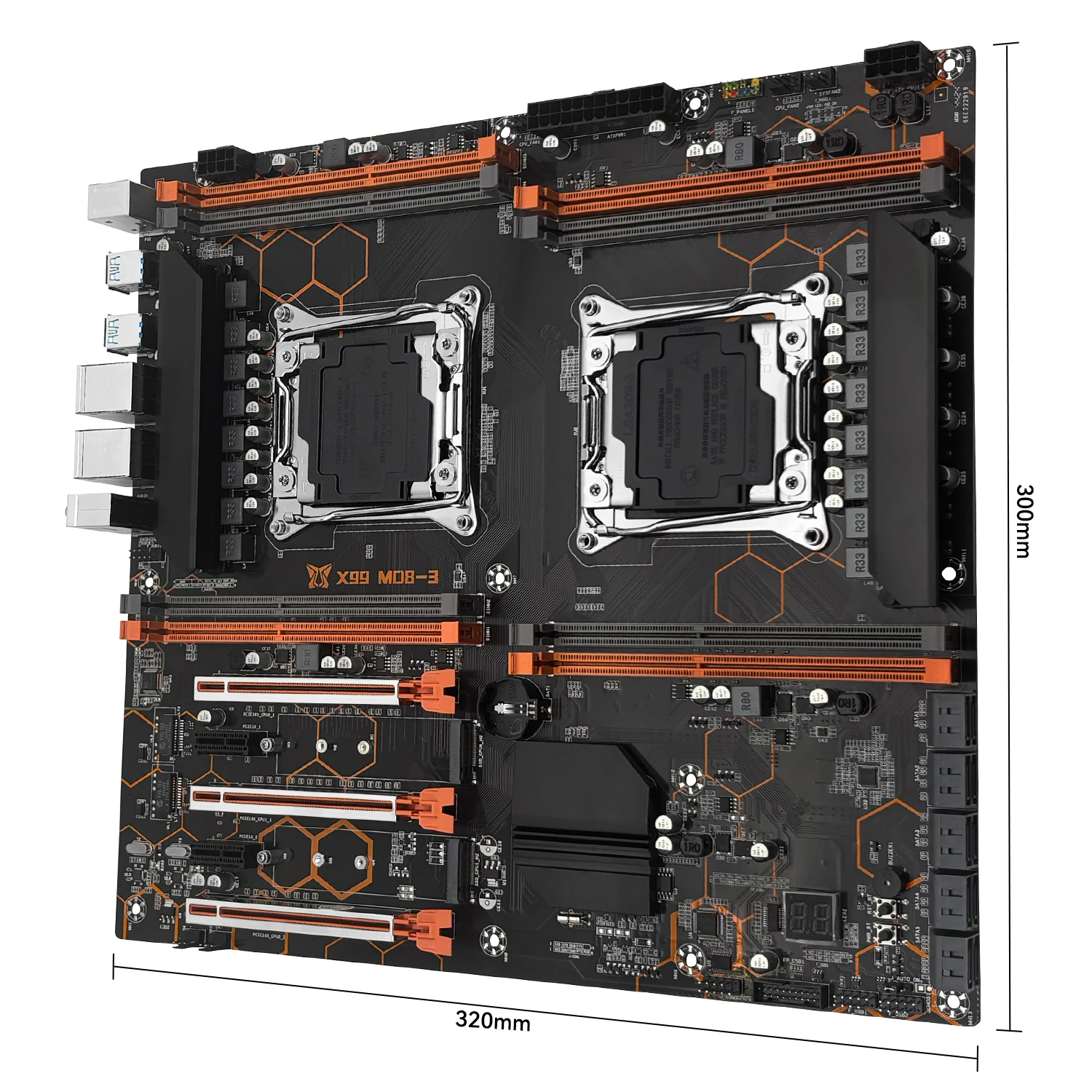

Size: 320mm*300mm.
| Bundle | Motherboards |
|---|---|
| High-concerned chemical | None |
| RAID Supported | no |
| Processor compatibility | 6th Intel Core i5,Intel Others |
| Usage Scenario | Gaming,Audio & Video,Office,Video Production,Mini PC,others |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,PWR_FAN Connector,USB 3.0 Connector,USB 2.0 Connector |
| Back I/O Ports | 1x RJ45,4 x USB 2.0,PS/2 |
| Support USB Type | USB 2.0,USB 3.0 |
| Max LAN Speed | 1000Mbps |
| Onboard LAN | 1x RJ45 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 2 |
| Number of SATA Ports | 10 |
| Storage Interface Type | SATA,M.2 (NVMe),M.2 (SATA) |
| Number of PCI | 5 |
| Number of PCIe x 1 | 2 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 8 | 1 |
| Number of PCIe x 16 | 2 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 8 |
| Support Memory Type | DDR3 |
| Quality Certification | ce,ROHS |
| Memory channel | Four |
| Form Factor | E-ATX |
| Package | Yes |
| Maximum Ram Capacity | 256GB |
| Chipset Manufacturer | Intel |
| Battery Included | no |
| Material | others |
| With CPU | No |
| Chipset | C612 |
| Application | Desktop |
| Socket Type | LGA 2011-3 |
| Brand Name | MACHINIST |
| Special Features | NONE |
| Origin | Mainland China |
| Certification | RoHS,CE |
