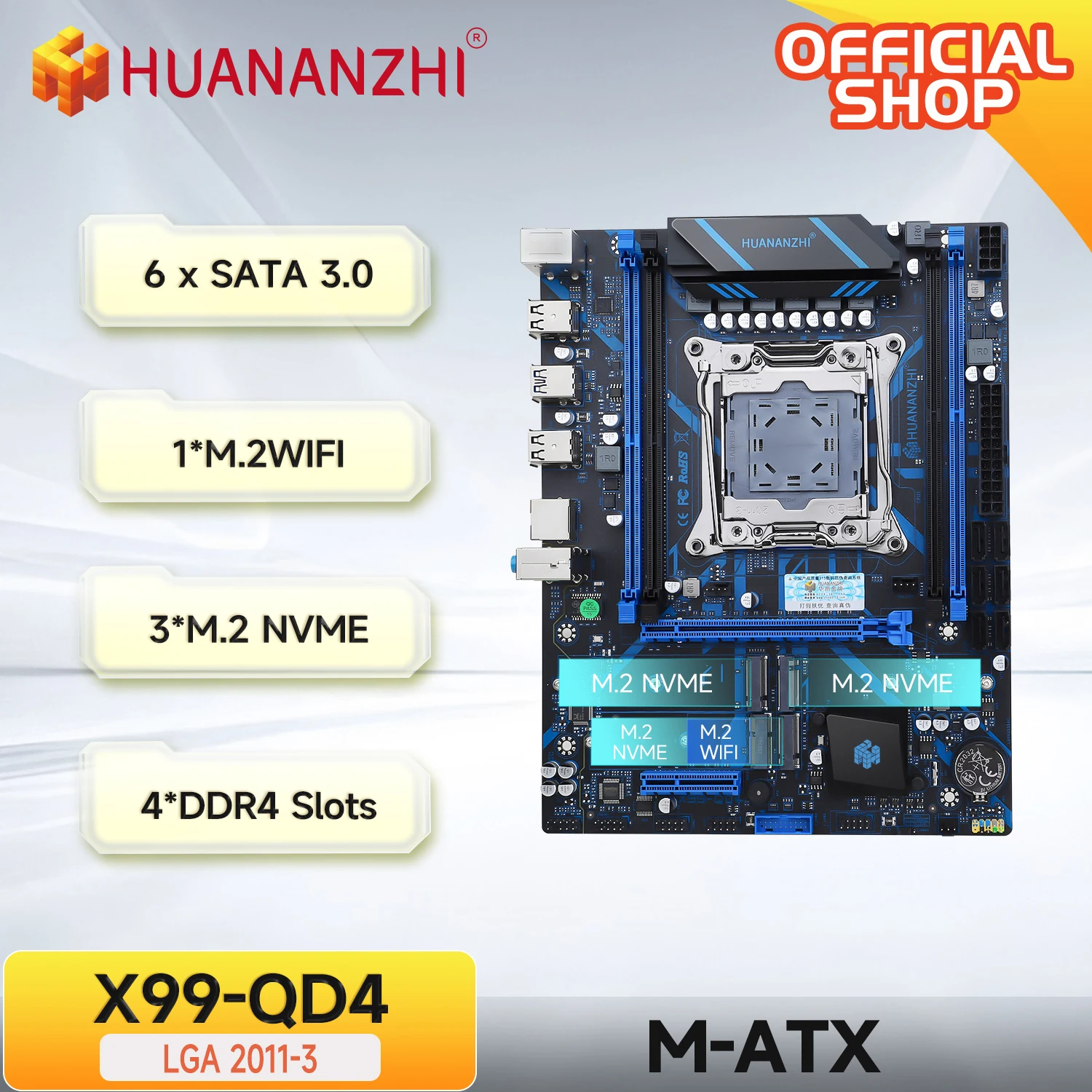

HUANANZHI X99 QD4 LGA 2011-3 XEON X99 Motherboard Intel E5 2640 2666 2670 2696 V3 V4 Support DDR4 RECC NON-ECC Memory NVME SATA
Out of stock
- High-concerned chemical: None
- RAID Supported: no
- Processor compatibility: Intel Xeon E Series
- Usage Scenario: Gaming,Audio & Video,Office
- Back I/O Ports: 1x RJ45
- Onboard LAN: 1x RJ45
- Storage Interface Type: SATA
- Number of PCI: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Memory channel: Four
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Chipset Manufacturer: Intel
- Battery Included: no
- With CPU: No
- Chipset: Q87
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: HUANANZHI
- Origin: Mainland China
- Special Features: NONE
If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

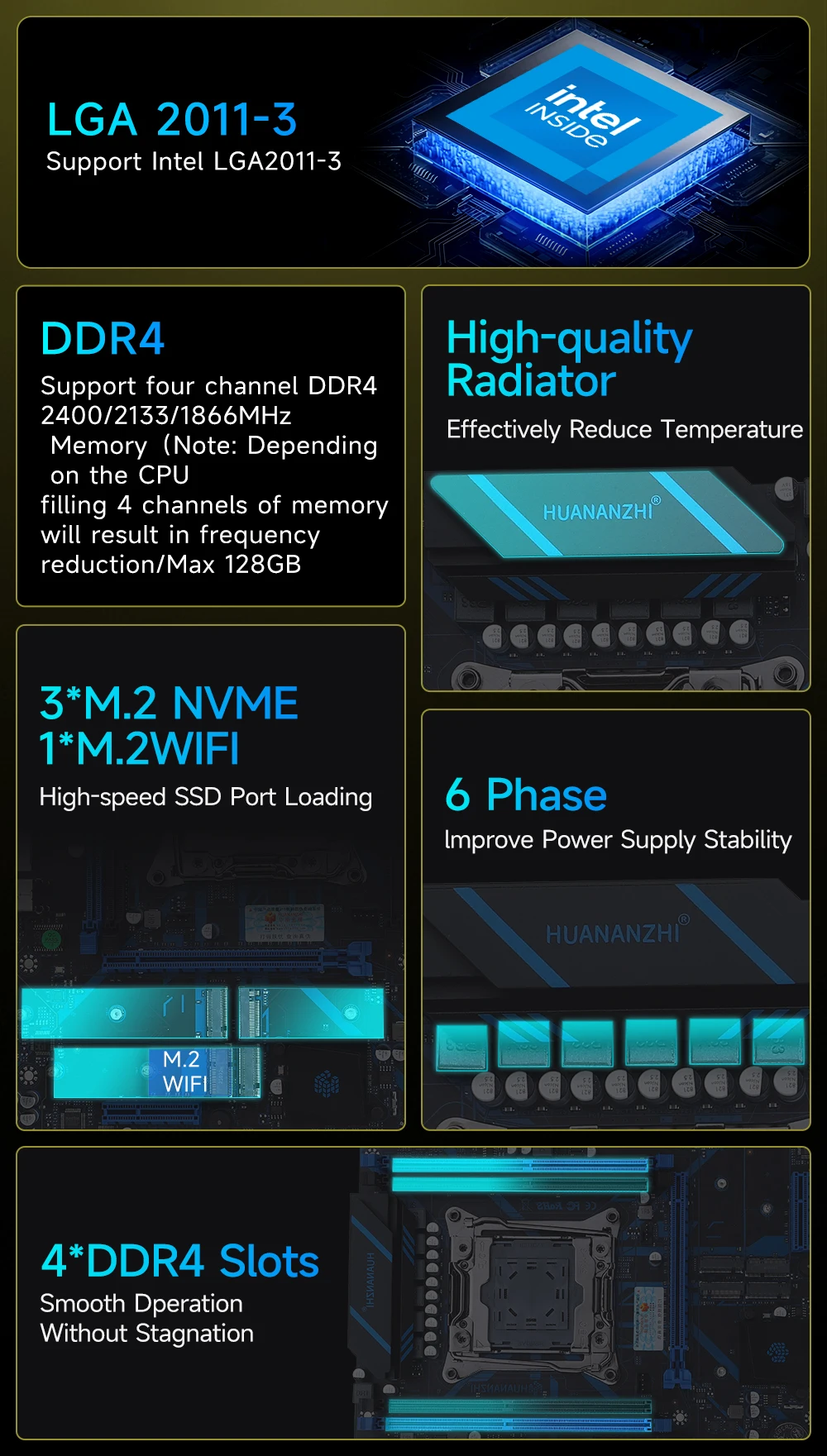

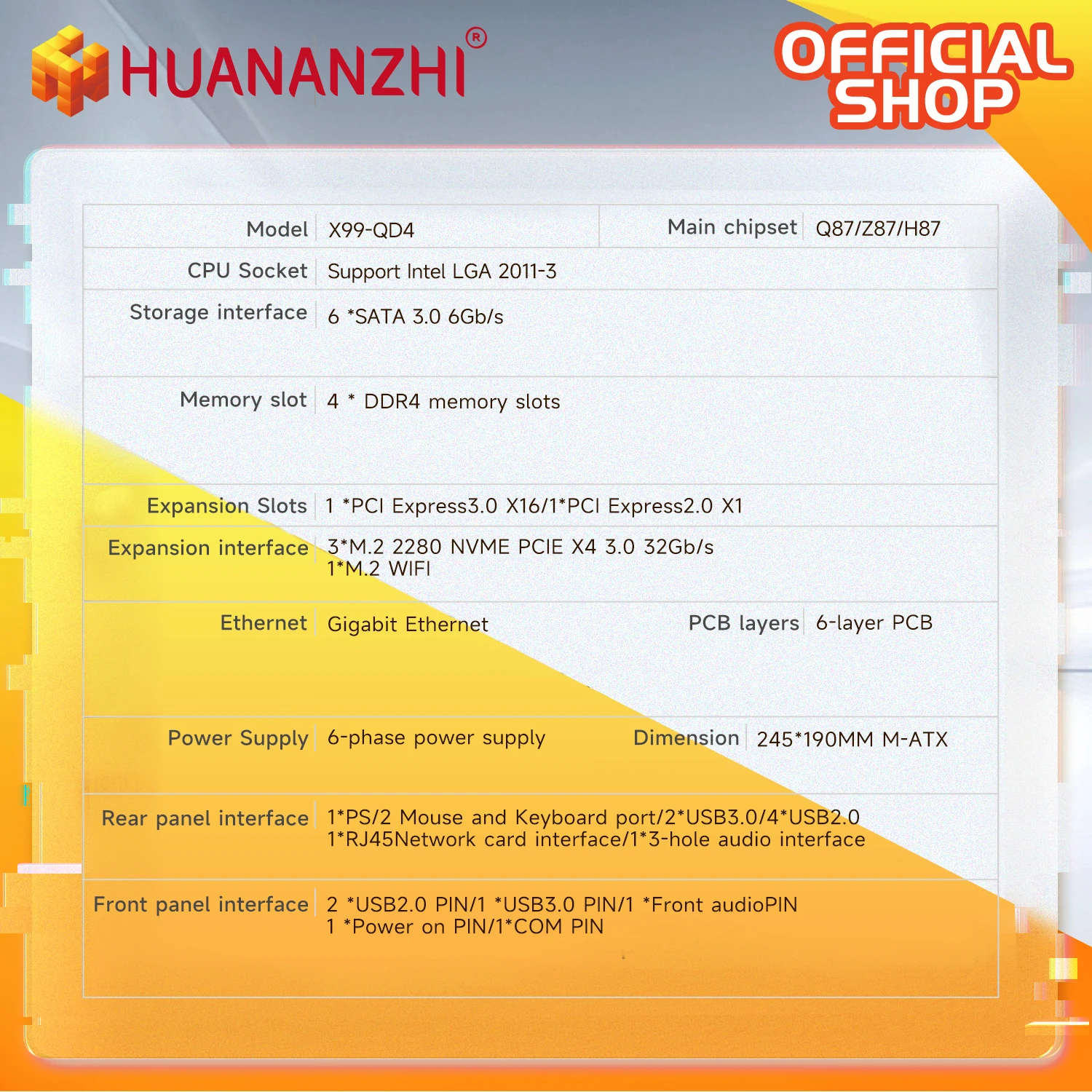

Specifications:
Model๏ผHUANANZHI X99-QD4 Motherboard
Main chipset๏ผIntel Q87/Z87/H87 … Etc chipset shipped randomly
CPU Socket๏ผSupport Intel LGA2011-3 platform processor
Memory slot๏ผ4 x DDR4 memory slot
Memory standard๏ผSupport four channel DDR4 2400/2133/1866MHz Memory(Depends on CPU)๏ผMax support 128GB
Storage interface๏ผ6 x SATA 3.0 6Gbps
Expansion Slots๏ผ1 x PCI Express3.0 x16๏ผ1xPCI Express2.0x1
Expansion interface๏ผ3x M.2 2280 NVME PCIE X4 3.0 32Gb/s๏ผ1*M.2 WIFI
Soud Track๏ผRealtek High Fidelity Audio
Network Card๏ผRealtek Gigabit Ethernet
Power interface๏ผ24PIN+8PIN
FAN PIN๏ผ2xCPU_FAN PIN๏ผ1xSYS_FAN PIN
power supply๏ผ6-phase power supply
PCB layers๏ผ6-layer PCB

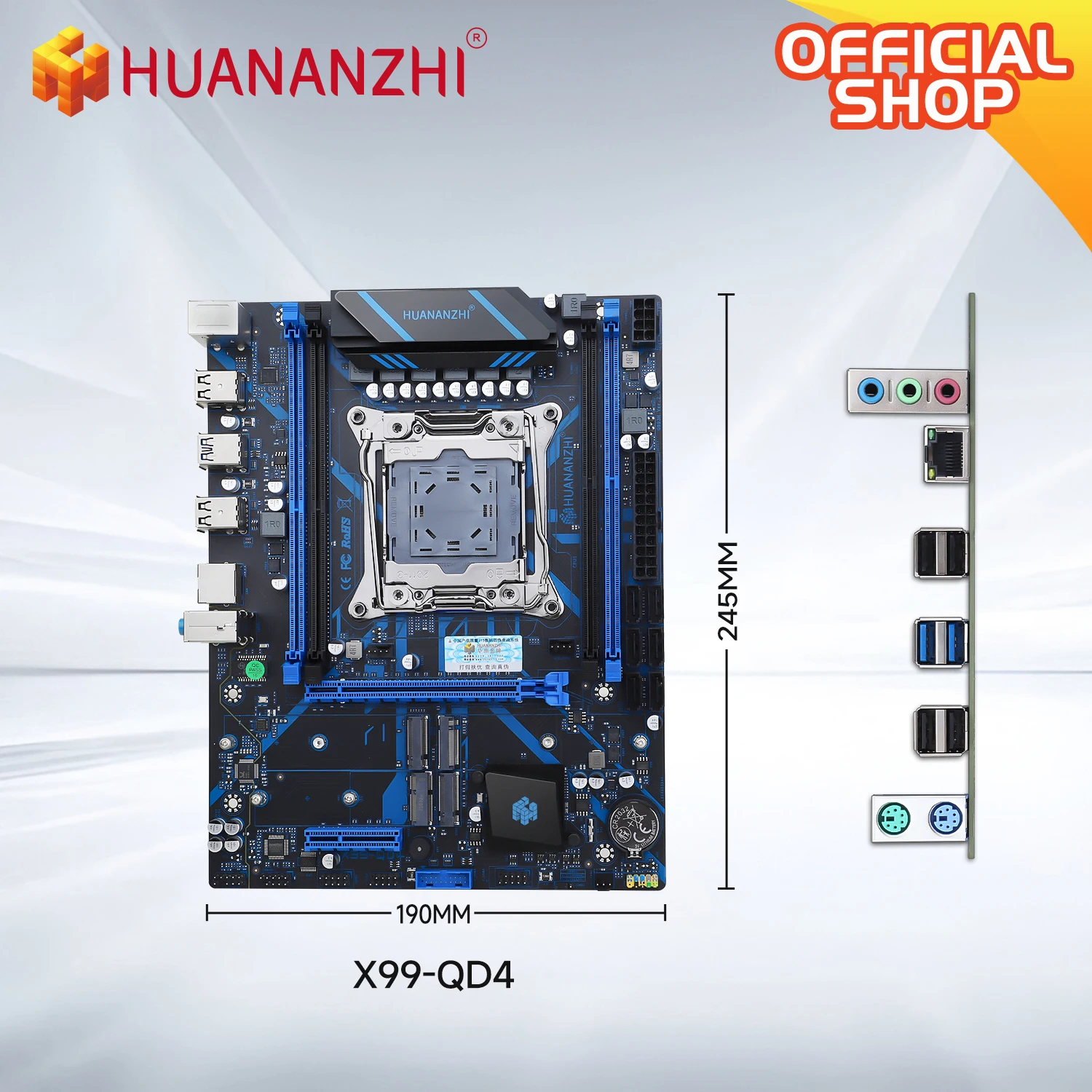

Dimension๏ผ245*190MMM-ATX

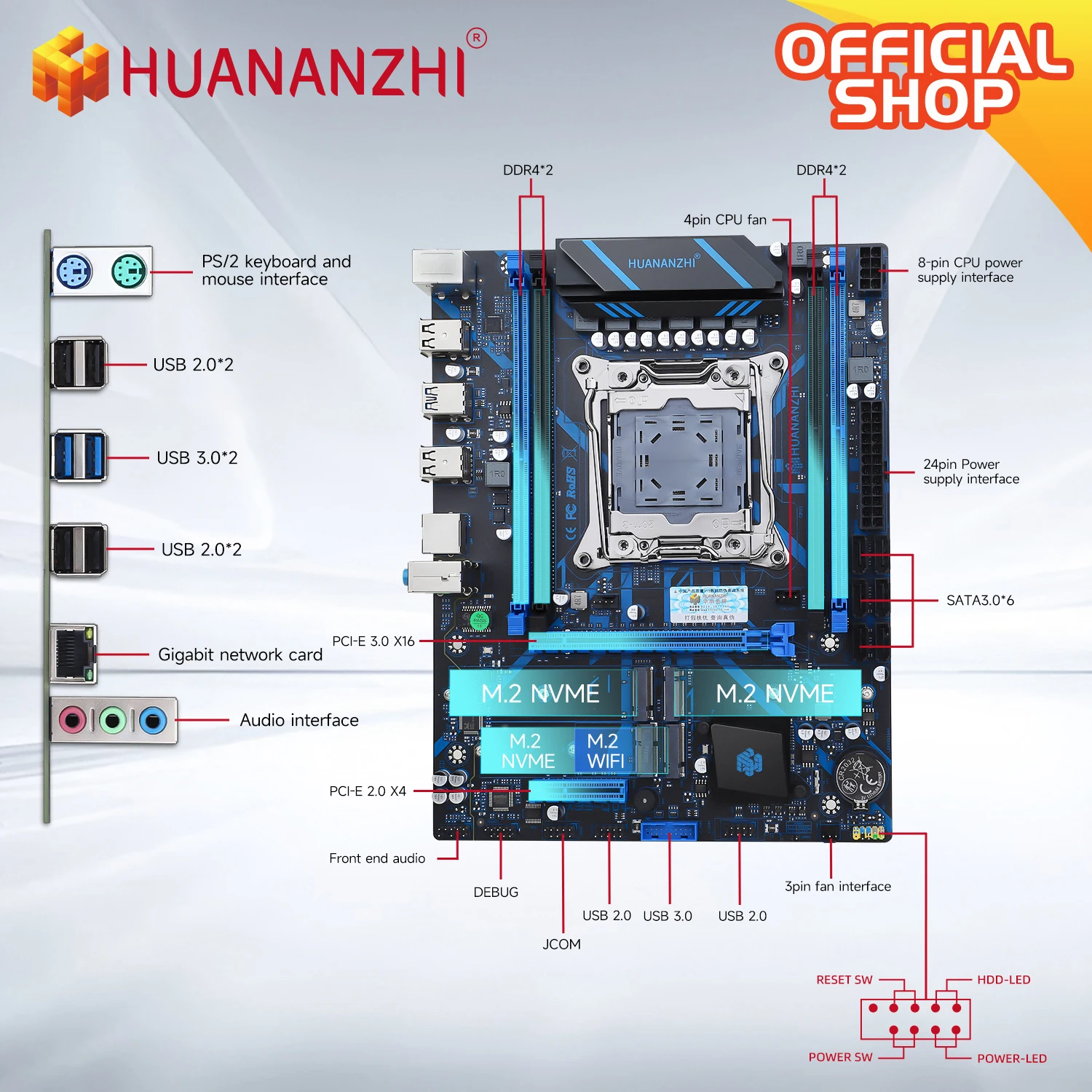

Rear panel interface๏ผ1x PS/2 Mouse and Keyboard port๏ผ2xUSB3.0๏ผ4xUSB2.0๏ผ1xRJ45Network card interface๏ผ1×3-hole audio interface
Front panel interface๏ผ2 x USB2.0 PIN๏ผ1 x USB3.0 PIN๏ผ1 xFront audioPIN๏ผ1 xPower on PIN๏ผ1xCOM PIN
Support system๏ผWindows7 Windows10 Windows11
BIOS๏ผAMI UEFI BIOS
Note:
1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2.Please allow 1-3mm differs due to manual measurement.
3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5.We show photos of motherboard, pictures are for reference only, subject to our available products.
6.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding๏ผ
7.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
We promise to test and deliver the order you submitted within 24 hours



















Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
