AMD B550M Gaming Motherboard AM4 SOYO Dual DDR4 Computer 64GB PCIE4.0x16 HDMI2.0 VGA 2*M.2 NVME SATA3.0 PC kit xeon USB3.0 HDMI
- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3
- Ports: Ethernet
- Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Rendering
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,USB 3.0 Connector,8-pin +12V Power Connector,System Panel(s) (Chassis intrusion header is inbuilt)
- Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.3,2x USB 3.2/3.1 Gen 1,PS/2
- Support USB Type: USB 2.0,USB 3.2 Gen2
- Onboard LAN: 1x RJ45
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Number of SATA Ports: 4
- Storage Interface Type: SATA 3,M.2 (NVMe)
- Number of PCI: 1
- Crossfire: AMD Dual Graphics
- PCI – E standards: PCI-E 4.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR4
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Chipset Manufacturer: AMD
- Battery Included: no
- With CPU: No
- Chipset: AMD B550
- Application: Desktop
- Socket Type: AM4
- Brand Name: SOYO
- Special Features: Cooling Armor
- Origin: Mainland China
• Dual Channel Support :Enjoy faster data transfer rates and improved system performance with the dual channel support feature.
• M.2 NVMe Support :Experience lightning-fast data transfer speeds and improved system responsiveness with the M.2 NVMe support feature.
• Crossfire Dual Graphics :Enjoy high-quality graphics and improved gaming performance with the crossfire dual graphics feature.
• DDR4 Support :Enjoy improved system stability and performance with the board's DDR4 memory support.
● Note：The CR2032battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
Motherboard Chipset: AMD B550
CPU: Supports AMD Ryzen 3000 (excluding G-series) / 4000, 4000G-series / 5000, 5000G-series processors. Optional models include R5-3600, R5-4650G, R5-5600G, R7-5700X, R7-5700X3D, etc.
Memory: 2× DDR4 dual-channel memory, supporting frequencies of 2133/2400/2666/3000/3200/3600MHz (OC+). Supports XMP, with a maximum capacity of 64GB (32GB×2).
Storage: 2× M.2 slots (CN2: PCIe 4.0 X4 / SATA 3.0; CN3: PCIe 3.0 X4), plus 4× SATA 3.0 interfaces.
Display Interface: 1× HDMI 2.0 port, 1× VGA port.
Network: 1× RJ45 Ethernet port.
LAN Chipset: Realtek Gigabit Ethernet Controller.
PCIe Slots: 1× PCIe X16 slot (PCIe 4.0 X16), 1× PCIe X1 slot (PCIe 3.0 X1), 1× WIFI slot (PCIe protocol).
Audio: 1× Line out, 1× Mic In, 1× Line In, 1× F_Audio internal header.
Audio Chipset: Realtek ALC897 High-Definition Audio Codec.
USB Interface: I/O ports: 4× USB 3.2 Gen1 (5Gbps), 4× USB 2.0. Internal headers: 1× USB 2.0 header (supports 2 additional USB 2.0 ports), 1× USB 3.0 header (supports 2 additional USB 3.0 ports, 5Gbps).
Function Headers: 1× FPANEL front panel header, 1× 4Pin CPU fan header, 1× 4Pin + 1× 3Pin SYS fan header, 1× 4Pin Speaker header, 2× 5Pin COM headers, 2× 5Pin Debug headers, 3× 5V 3PIN ARGB headers.
Power Input: 24 Pin + 8 Pin ATX Power Connector.

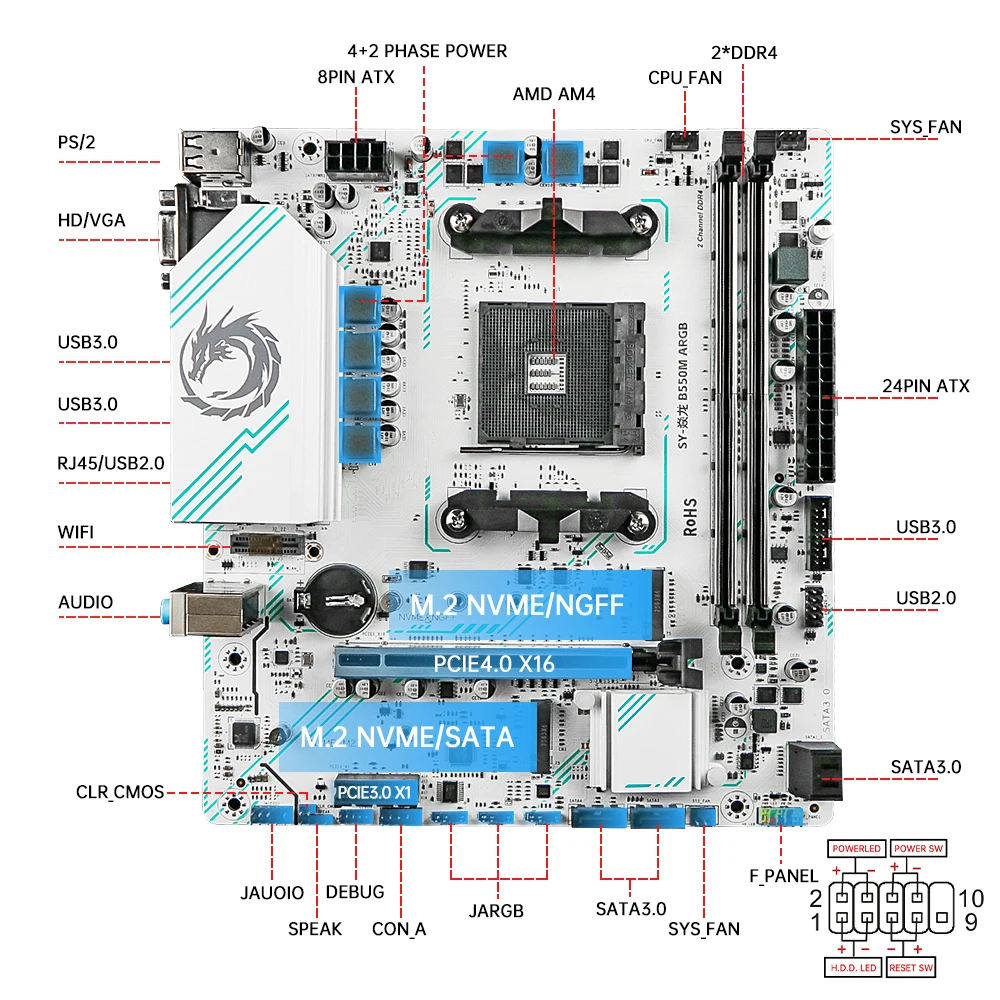

Rear Interfaces
Dual USB 2.0 Ports HDMI + VGA Ports Dual USB 3.0 Ports Dual USB 3.0 Ports
Dual USB 2.0 Ports + RJ45 Gigabit Ethernet Port
Audio Input/Output Jacks
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3) All motherboard memory processors are strictly tested before shipment.
SOYO ETERNAL SY-YL B550M
AMD AM4 DDR4 MEMORY
High specification, strong expansion,super single product
Powerful power supply module
4+1+1-phase power supply combo
RT3667BB
Core RT3667BB Proven, stable solution delivers high-performance power to CPUs.
Dual-slot, dual-channel DDR4 memory for stable operation
Dual-channel DDR4 slot design
Maximum support 3600MHz (OC+)
2 DIMM DDR4 memory slots
Supports up to 64GB total capacity
Supports dual-channel memory technology Supports 2133/2400/2666/3000/3200/3600MHz (OC+)memory frequency
Rarely seen in its class with extra-specification extensions
2*M.2 interface 1*NVME/NGFF,1*NVME/SATA
1 PCIEX16 4.0 slot
Supports AMD and NVidia discrete graphics cards
1 PCIEX1 3.0 slot Supports multiple device extensions
(1)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(2) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
| Bundle | Motherboards |
|---|---|
| High-concerned chemical | None |
| RAID Supported | Yes |
| Processor compatibility | AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3 |
| Ports | Ethernet |
| Usage Scenario | Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Rendering |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,USB 3.0 Connector,8-pin +12V Power Connector,System Panel(s) (Chassis intrusion header is inbuilt) |
| Back I/O Ports | 1x RJ45,VGA (D-Sub),HDMI 1.3,2x USB 3.2/3.1 Gen 1,PS/2 |
| Support USB Type | USB 2.0,USB 3.2 Gen2 |
| Onboard LAN | 1x RJ45 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Number of SATA Ports | 4 |
| Storage Interface Type | SATA 3,M.2 (NVMe) |
| Number of PCI | 1 |
| Crossfire | AMD Dual Graphics |
| PCI - E standards | PCI-E 4.0 |
| Number Of Memory Slots | 2 |
| Support Memory Type | DDR4 |
| Memory channel | Double |
| Package | Yes |
| Maximum Ram Capacity | 128 GB |
| Chipset Manufacturer | AMD |
| Battery Included | no |
| With CPU | No |
| Chipset | AMD B550 |
| Application | Desktop |
| Socket Type | AM4 |
| Brand Name | SOYO |
| Special Features | Cooling Armor |
| Origin | Mainland China |
Waxaan ku dadaaleynaa inaan hubinno in alaabtayadu ay buuxiyaan filashooyinkaaga. Haddii aad ogaato in iibsigaagu uusan ahayn sidii lagu sharraxay, waxaad ku soo celin kartaa 1 maalin gudaheed marka la helo. Shayga waa in aan la isticmaalin, baakadkiisii asalka ahaa, iyo xaalad la mid ah tii aad heshay. Fadlan la xiriir kooxdayada adeegga macaamiisha si aad u bilowdo habka soo celinta oo aad u hesho oggolaansho soo celin. Marka aan helno shayga la soo celiyay, waan baari doonnaa oo waxaan ka shaqeyn doonnaa soo celintaada ama is-weydaarsigaaga 14 maalmood gudahood. Siyaasadaha soo celinta iyo soo celinta
We strive to ensure our products meet your expectations. If you find that your purchase is not as described, you may return it within 7 days of receipt. The item must be unused, in its original packaging, and in the same condition that you received it. Please contact our customer service team to initiate the return process and obtain a return authorization. Once we receive the returned item, we will inspect it and process your refund or exchange within 5 business days.
